T12 Class
1,200 lbs. Lift Capacity

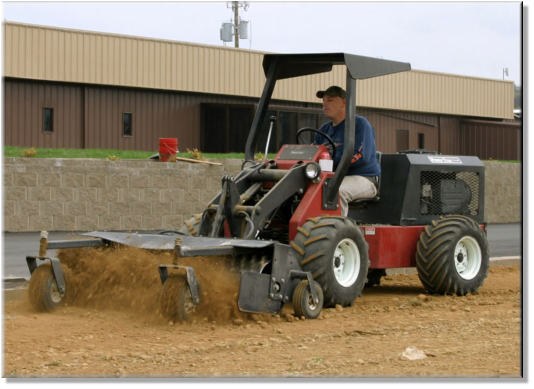

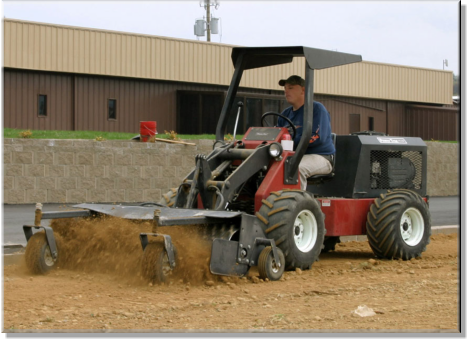

PT-1430
General Features
1,200 lbs. lift capacity 30HP diesel engine 6’ lift height 53” wide 40 attachments offered Hydraulic Operated Quick Attach 4-wheel Hydrostatic Drive Infinitely Variable Speeds Independent wheel motors Price Information Articulated steering:  +/- 45 degrees Oscillates +/- 12 degrees PT-1430 is ideal for professional landscapers, rental stores, homeowners and horse barns
Steering Wheel Joystick: controls arms’ lift and tilt functions Throttle and Choke control Draft Control Ignition PTO switch Hourmeter Light switch Gauge with engine temperature, oil pressure, fuel and voltage

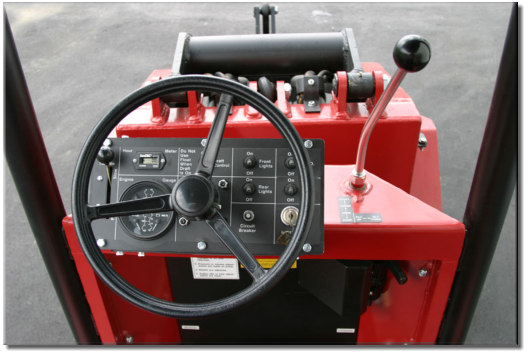

1430 Control Panel
Two-toe treadle controls speed Press right pedal to go forward Press left pedal to go reverse Centering the pedal acts as a service brake Auxiliary PTO is above operator’s right knee Park Brake is above operator’s left knee

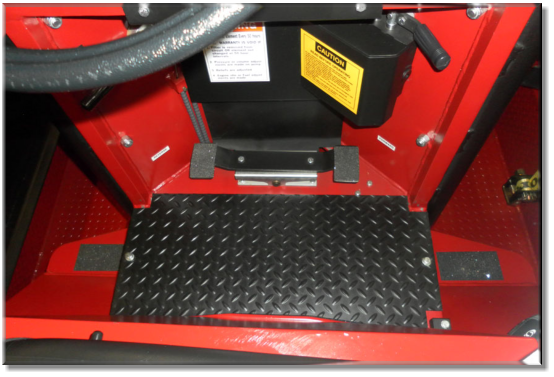

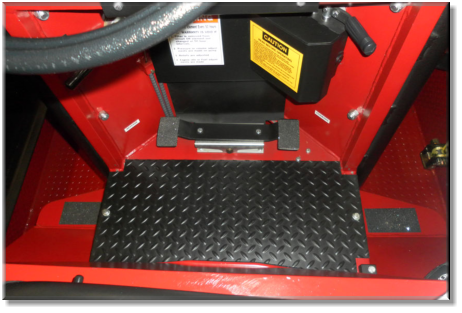

1430 Operator’s Compartment
PT-1430 Specifications
Weight:  2,560 lbs. Width:  53” Height:  72” to top of canopy Speed:  0-10 mph variable PTO:  12GPM @ 2,500 PSI Frame:  3/16” to 3/8” steel plate Fuel Tank:  8 gallon capacity Hydraulic Oil Tank:  15 gallon 10W40 Lift Capacity:  1,200 lbs Lift Height:  6’ Outside Turning Radius:  107” Inside Turning Radius:  52” Wheel Base:  65” ROPS:  standard Lights: 36 watt halogen, 2 front, 1 rear

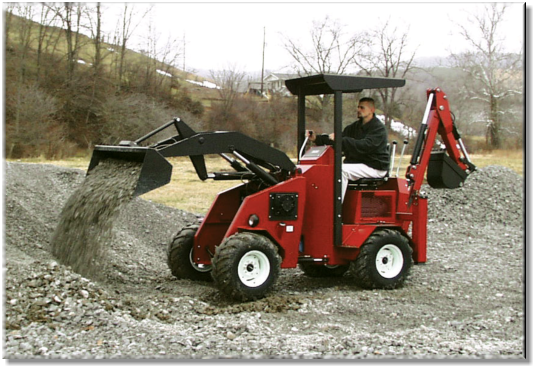

PT-2430
1,200 lbs. lift capacity 30HP diesel engine 8’ lift height 53” wide 40 attachments offered Hydraulic Operated Quick Attach 4-wheel Hydrostatic Drive Infinitely Variable Speeds Independent wheel motors Price Information Articulated steering:  +/- 45       degrees Oscillates +/- 12 degrees PT-1430 is ideal for professional        landscapers, rental stores,        homeowners and horse barns
General Features

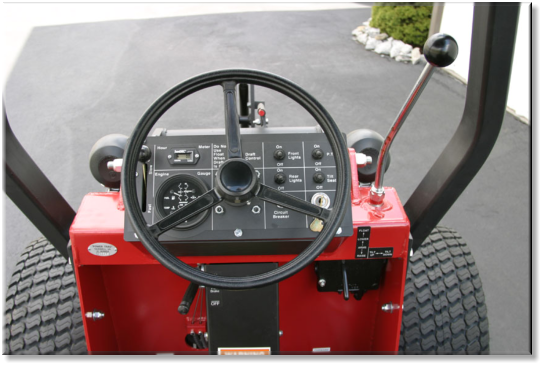

2430 Control Panel
Steering Wheel Joystick: controls arms’ lift    and tilt functions Throttle and Choke control Draft Control Ignition PTO switch Hourmeter Light switch Gauge with engine     temperature, oil pressure,     fuel and voltage

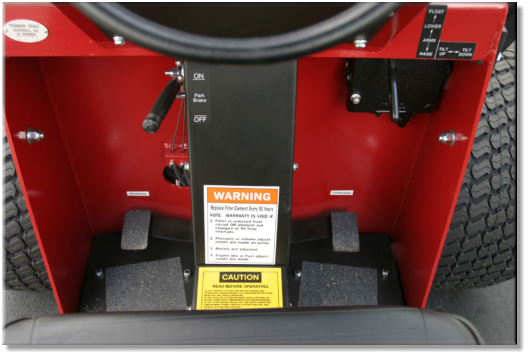

2430 Operator’s Compartment
Two-toe treadle controls speed Press right pedal to go forward Press left pedal to go reverse Centering the pedal acts as a      service brake Auxiliary PTO is above operator’s      right knee Park Brake is above operator’s      left knee

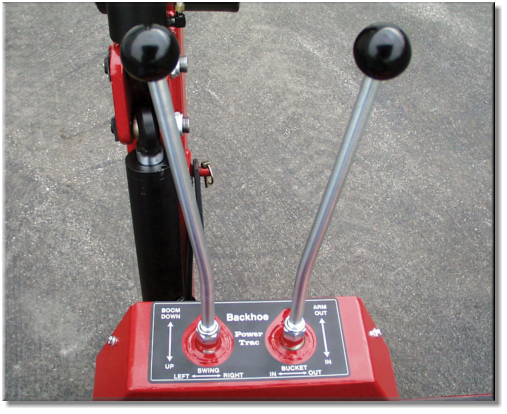

Control backhoe with 2      joysticks A right or left motion on the      right joystick controls the      bucket’s up or down motion      and an up or down motion      controls the arm’s in and out      motion A right or left motion on the left      joystick controls the swing and      an up or down motion controls      the boom’s up and down      motion
2430 Tractor Specifications
Engine:  30HP Diesel Weight:  3,850 lbs. Speed:  0-8 mph Tires:  26-12:00x12, 4-ply, bar or turf Ground Clearance:  9” Frame:  3/8” to 1/2” Steel Plate PTO:  12GPM @ 2,500 PSI Fuel Tank:  5 gallon Hydraulic Oil Tank:  8 Gallon 10W40 Lift Capacity:  1,200 lbs. Lift Height:  8’ Inside Turning Radius:  50” Outside Turning Radius:  108” Wheel Base:  63” ROPS:  Standard
2430 Backhoe Specifications
Reach:  9’6” Breakout Force (bucket curl): 3,000 lbs. Digging Depth: 7’ Bucket Widths:  12” & 18” Swing:  60° both directions Outrigger:  vertical slide
TR12 Trailer Package

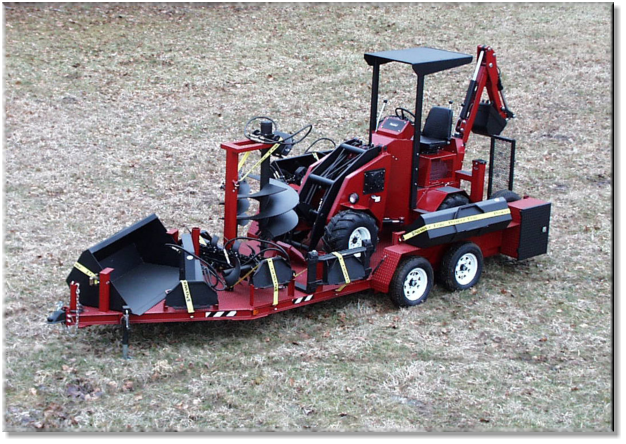

14 ft. custom trailer with spare tires, toolboxes and PT2430 tractor
Choose from a standard package with trailer, PT1430 or PT2430 tractor, 8cu. bucket, 18cu. bucket, lift boom, forks, trencher, planter drill head, 9”, 24” and 36” augers, stump cutter, tiller, lift boom, forks OR build your own custom package: o up to 15 attachments o choose between PT-1430 and PT-2430 o 10,000 lbs. gross weight o Double Axle Trailer o Electric Brakes on both axles o Hitch options:  Pendle or 2- 5/16” ball *Call 1-800 THE YARD for Trailer Prices
Home

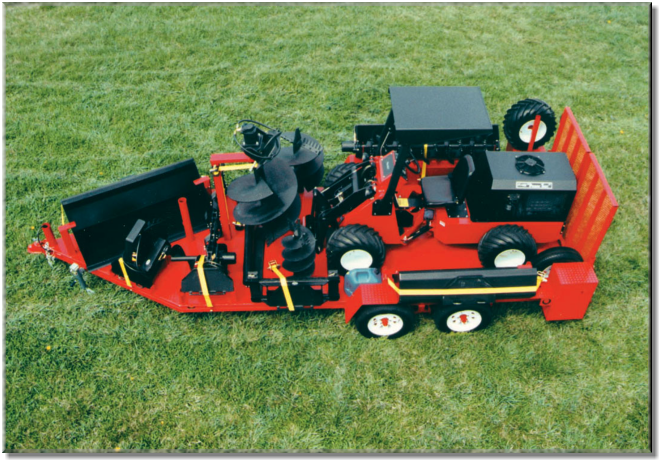

TR12 with PT1430 tractor
TR12 Trailer Package features
