T8 Class- 800 lbs. lift capacity |
||||||||||||||||||||||||||||||||||||

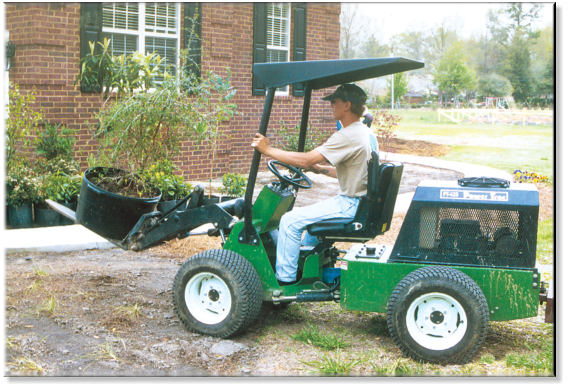

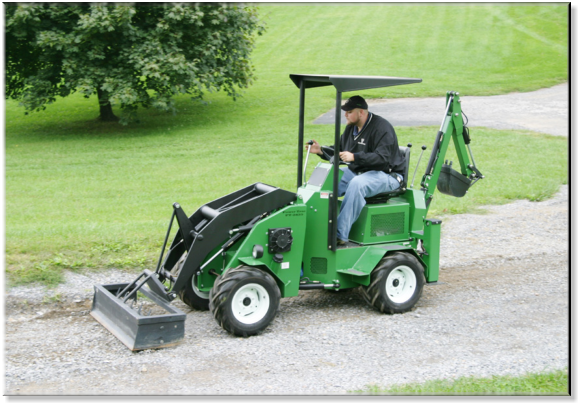

PT-425 Compact Versatile Utility Tractor |
||||||||||||||||||||||||||||||||||||
General Features
- Oscillates Plus or Minus 12 Degrees - Machines are Ideal for Professional Landscapers, - Rental Stores, Homeowners and Horse Barns.
- Steering Wheel - Joystick- Controls arms' lift and tilt functions - Throttle and Choke Control - Ignition - PTO Switch - Hourmeter - Light Switch
- Two-Toe Treadle- controls speed - Press Right Pedal to go forward - Press Left Pedal to go reverse - Centering the treadle acts as a service brake - Auxiliary PTO is above operator's right knee - Park Brake is above operator's left knee
PT-425 Specifications
|
||||||||||||||||||||||||||||||||||||
-
425

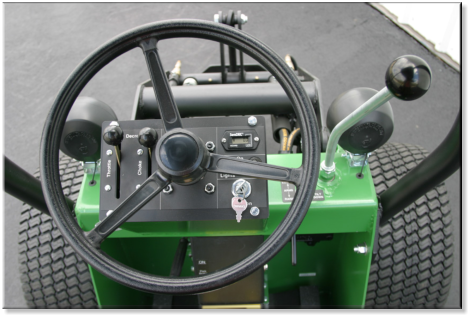

Control Panel
425

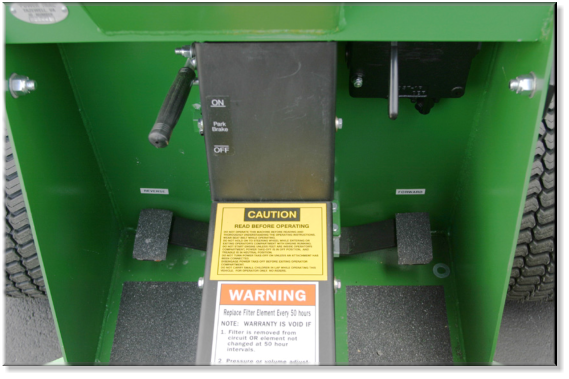

Operators Compartment

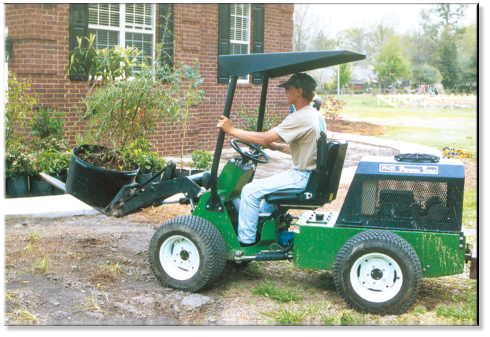

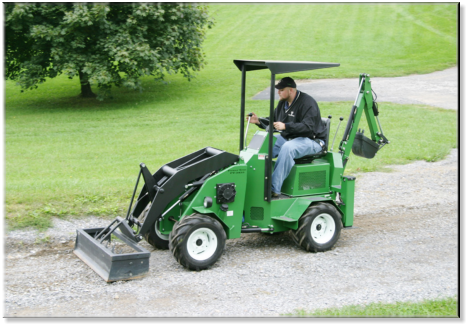

PT-2425 Compact Versatile Bucketloader
General Features
- 800 lbs. lift capacity
- - 25 Horsepower Gasoline Engine
- - 7' Lift Height
- - 45" Wide
- - 40 front mounted attachments
- - Hydraulic Operated Quick Attach
- - Removable Backhoe Available
- - 4-Wheel Hydrostatic Drive
- - Infinitely Variable Speeds
- - Independent Wheel Motors
- - Price Information
- Articulated steering; Plus or minus 45 Degrees
- Oscillates Plus or Minus 12 Degrees
- Machines are Ideal for Professional Landscapers, Rental Stores, - Homeowners and Horse Barns.
2425

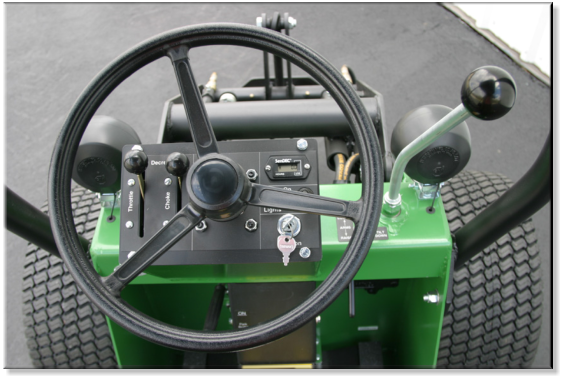

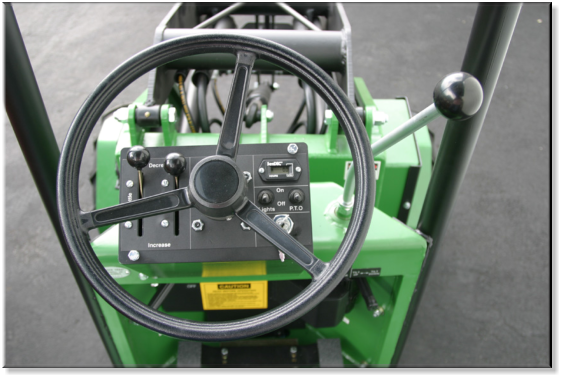

Control Panel
- Steering Wheel
- Joystick- Controls arms' lift and tilt functions
- Throttle and Choke Control
- Ignition
- PTO Switch
- Hourmeter
- Light Switch

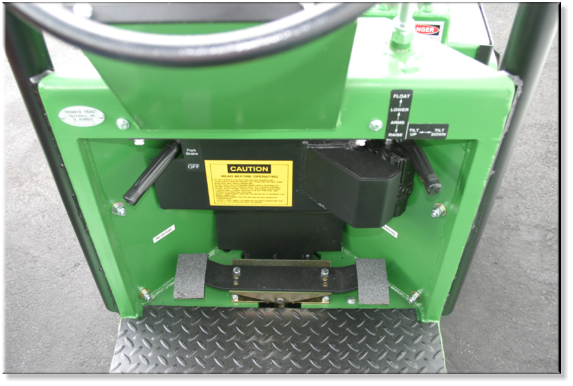

2425 Operator's Compartment
- Two-Toe Treadle- controls speed
- Press Right Pedal to go forward
- Press Left Pedal to go reverse
- Centering the treadle acts as a service brake
- Auxiliary PTO is above operator's right knee
- Park Brake is above operator's left knee

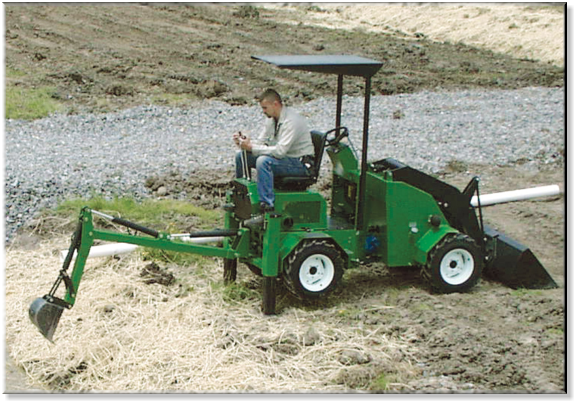

Control

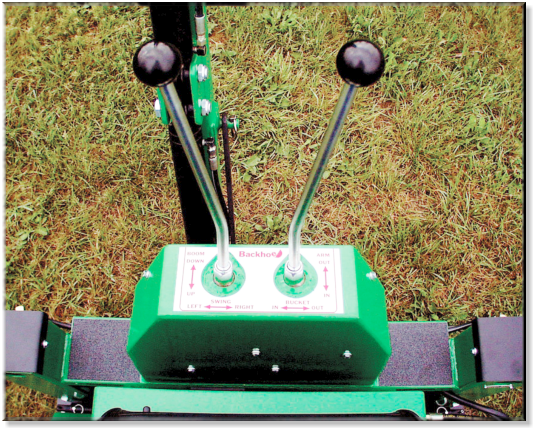

the backhoe with two joysticks:
- A right or left motion on the right joystick controls the bucket's up and down motion and an up or down motion controls the arm's in and out motion.
- A right or left motion on the left joystick controls the swing and an up or down motion contols the boom's up and down motion.
|
|
|
|
|
|
|
|
|
|
PT-2425 Specifications
|
2425 Tractor Specifications |
2425 Backhoe Specifications |
| Weight (w/o Backhoe)- 1,725 lbs. | Reach- 8'4" |
| Weight (w/ Backhoe)- 2,130 lbs. | Breakout Force (Bucket Curl)- 2,500 lbs. |
| Speed- 0-8mph | Digging Depth- 6' |
| Tires- 23-10:50x12 Bar Tread | Bucket Widths- 9", 12" |
| Ground Clearance- 8" | Swing- 60˚ both directions, 120° total |
| Frame- 3/16" to 1/2" Steel Plate | Outrigger- Vertical Slide |
| Height- 83" | |
| Width- 45" | |
| Length- 83" | |
| PTO- 8GPM at 2500 PSI | |
| Fuel Tank- 5 gallon | |
| Hydraulic Oil Tank- 5 gallon 10W40 | |
| Lift Capacity- 800 lbs. | |
| Lift Height- 7' | |
| Inside Turning Radius- 45" | |
| Outside Turning Radius- 94" | |
| Wheel Base- 56" | |
| ROPS- Standard | |
