TSM Class- Compact Slope Mowers

General Features
PT-1845

- 45 Horsepower Diesel Engine

- 72" finished-cut mowing deck

- Lift Height-  6'

- Lift Capacity- 1,200 lbs.

- Maximum slope- 40 degrees

- 30 attachments

- Hydraulic Operated Quick Attach

- Articulated Steering

- Dual Tires

- Price Information

- TSM Class Video











1850

PT-1850

- 65 Horsepower Diesel Engine

- 90" rough-cut mowing deck

- Lift Height-  6'

- Lift Capacity- 1,200 lbs.

- Maximum slope- 45 degrees

- 30 attachments

- Hydraulic Operated Quick Attach

- Articulated Steering

- Dual Tires

- Price Information

- TSM Class Video

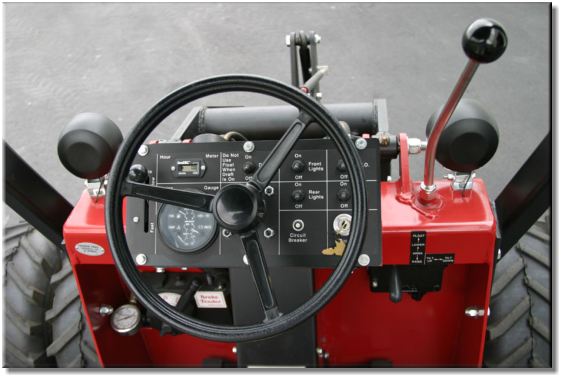

TSM Class Control Panel

- Steering wheel

- Joystick

- Throttle control

- Draft control

- Tilt seat

- Gauge with engine temperature, oil pressure, fuel and voltage

- Ignition

- PTO switch

- Hourmeter

- Light switch

- Auxiliary PTO- located above the operator's right knee

- Brake Tender-  located above the operator's left knee

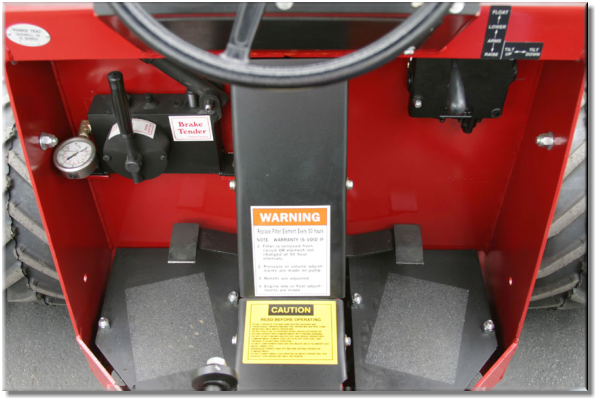

TSM Operator's Compartment

- Press the right pedal to go forward and press the left pedal to go reverse.

- Centering the pedal will stop the machine and acts as a service brake.

- Power Trac slope mowers can achieve infinitely variable speeds of 0-8 mph.

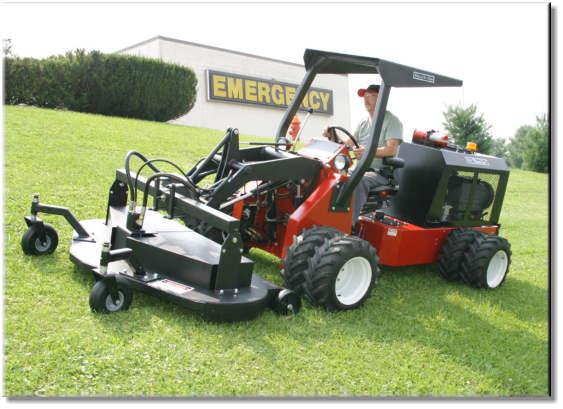

PT-1850

1850 at Cavitt's Creek in Tazewell County, Virginia.

Light and Fire Extinguisher

Beacon light and fire extinguisher come standard on Power Trac slope mowers.

Turf Tread Tires

Dual Turf Tread tires are available for Power Trac Slope Mowers.

8 Tires

Power Trac Slope Mowers feature dual tires for each wheel motor which widens the trac and lowers the center of gravity. Heavy wheel studs; NO wheel extensions

Tilt Seat

Power Trac Slope Mowers feature a tilt seat which keeps the operator level while operating the tractor on steep slopes.

Hydraulic Oil Tank

The Hydraulic Oil tank on Power Trac slope mowers has a 20 gallon capacity.

Standard ROPS

Standard canopy on Power Trac slope mowers

PT-1850

The 1850 mowing a steep slope.

Brake Tender

TSM Class machines have a reliable braking system which allows them to maneuver safely on steep slopes.



TSM Class Specifications

Tractor Specifications

PT-1845

PT-1850

Engine 45 Horsepower Diesel 65 Horsepower Diesel
Weight 3,315 lbs. with single tires; 3,463 lbs. with dual tires 3,848 lbs. Dual Tires
Width 70" 84"
Length 116" (with mower 165") 124" (with mower 186")
Speed 0-8 Mph 0-8 Mph
Tires 23-8:50x12; 4-ply bar tread 26x12:00x12; 4-ply bar tread
Frame 1/4" to 3/4" Steel Plate 1/4" to 3/4" Steel Plate
ROPS Meet SAE specs Meet SAE specs
PTO 15 GPM @ 3,000 PSI 18 GPM @ 3,200 PSI
Fuel 12 gallon capacity 12 gallon capacity
Hydraulic Oil 20 gallon 10W40 20 gallon 10W40
Lift Capacity 1,200 lbs. 1,200 lbs.
Lift Height 6' 6'
Inside Turning Radius 59" 66"
Outside Turning Radius 113" 134"
Wheel Base 71" 74"
Maximum Slope 40 Degrees 45 Degrees
