T18 Class

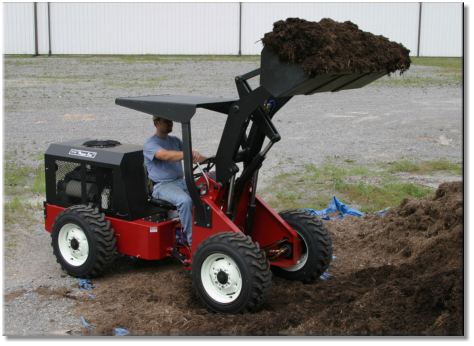

1,800 lbs. Lift Capacity

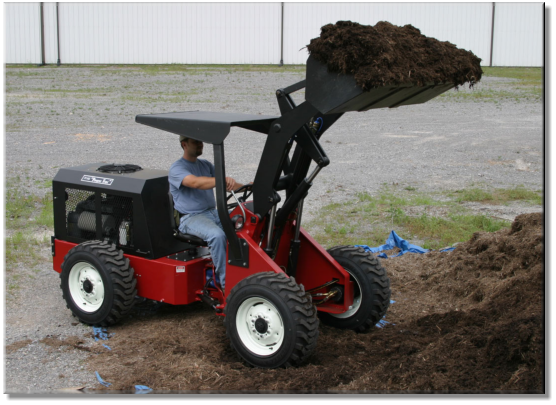

PT-1445
General Features
1,800 lbs. lift capacity 45HP diesel engine 7’ lift height 56” wide 30 attachments offered Hydraulic Operated Quick Attach 4-wheel Hydrostatic Drive Infinitely Variable Speeds Independent wheel motors Price Information Articulated steering:  +/- 45 degrees Oscillates +/- 12 degrees PT-1445 is ideal for professional landscapers, rental stores, nurseries, rock scaping and construction sites

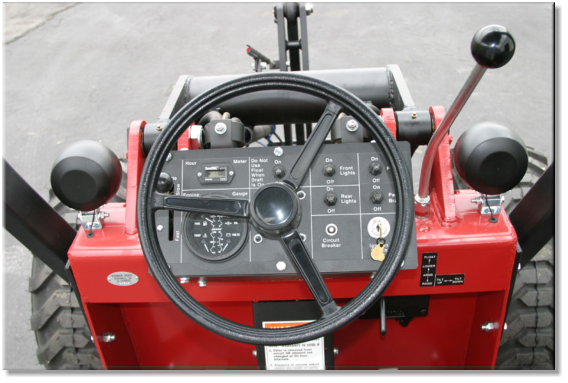

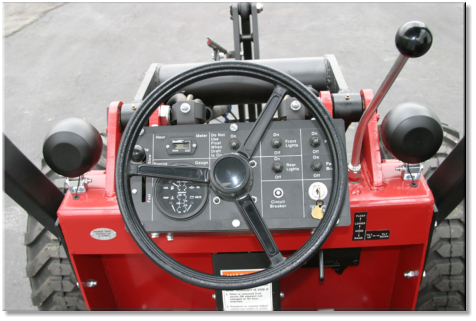

1445 Control Panel
Steering Wheel Joystick: controls arms’ lift and tilt functions Throttle and Choke control Draft Control Ignition PTO switch Hourmeter Light switch Gauge with engine temperature, oil pressure, fuel and voltage

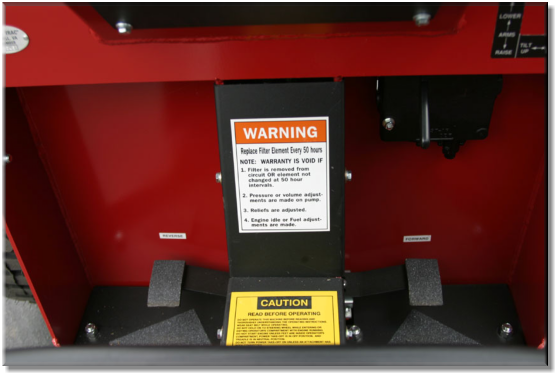

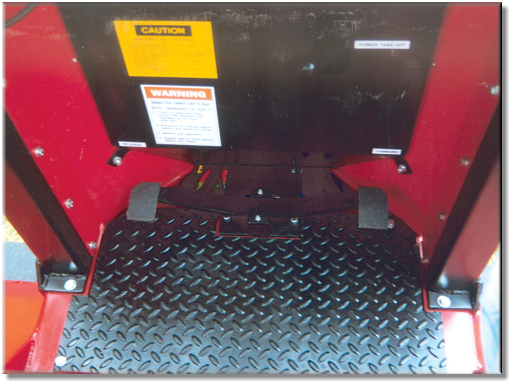

1445 Operator’s Compartment
Two-toe treadle controls speed Press right pedal to go forward Press left pedal to go reverse Centering the pedal acts as a service brake Auxiliary PTO is above operator’s right knee Park Brake is above operator’s left knee
PT-1445 Specifications
Weight:  3,920 lbs. Length:  121” Speed:  0-10 mph variable Ground Clearance: 10” unobstructed PTO:  15GPM @ 3,000 PSI Frame:  1/4” to 3/4” steel plate Fuel Tank:  12 gallon capacity Hydraulic Oil Tank:  20 gallon 10W40 Lift Capacity:  1,800 lbs Lift Height:  7’ Outside Turning Radius:  9’6” Inside Turning Radius:  4’5” Wheel Base:  74” ROPS:  standard Lights: 36 watt halogen, 2 front, 1 rear Tires:  10:00x16.5 Loader 6-ply; Tractor width:  56” Optional Tires:  31-15:50x15 turf 4-ply; Tractor width:  64”

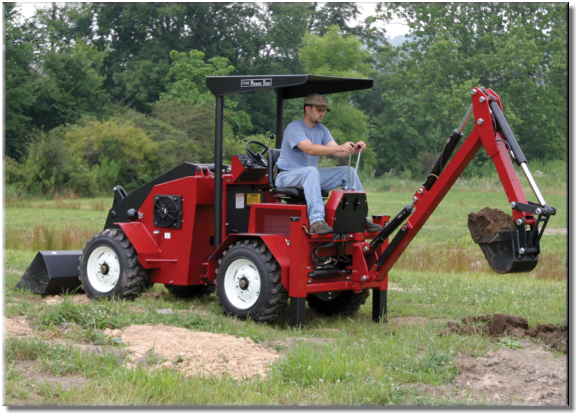

PT-2445
1,800 lbs. lift capacity 45HP diesel engine 9’ lift height 56” wide 30 attachments offered Hydraulic Operated Quick Attach 4-wheel Hydrostatic Drive Infinitely Variable Speeds Independent wheel motors Price Information Articulated steering:  +/- 45       degrees Oscillates +/- 12 degrees PT-2445 is ideal for professional        landscapers, rental stores,        rock scaping and construction sites

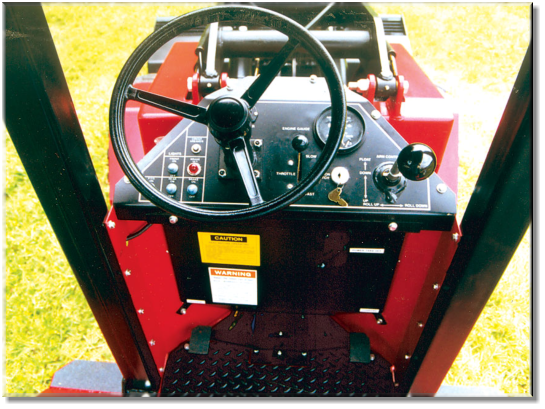

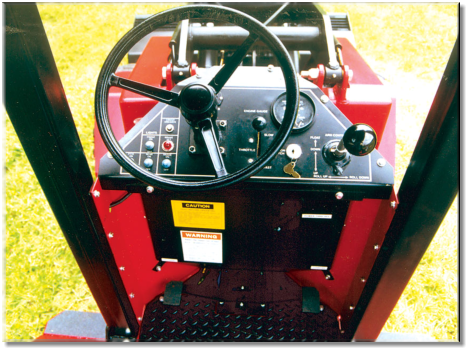

2445 Control Panel
Steering Wheel Joystick: controls arms’ lift    and tilt functions Throttle and Choke control Draft Control Ignition PTO switch Hourmeter Light switch Gauge with engine     temperature, oil pressure,     fuel and voltage
2445 Operator’s Compartment
Two-toe treadle controls speed Press right pedal to go forward Press left pedal to go reverse Centering the pedal acts as a      service brake Auxiliary PTO is above operator’s      right knee Park Brake is above operator’s      left knee

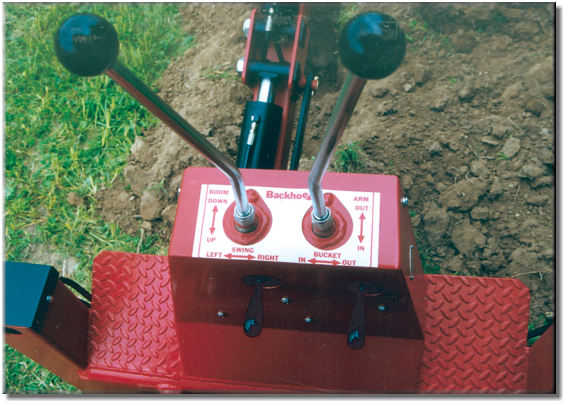

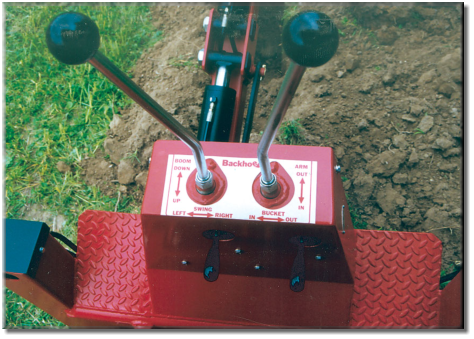

Control backhoe with 2      joysticks A right or left motion on the      right joystick controls the      bucket’s up or down motion      and an up or down motion      controls the arm’s in and out      motion A right or left motion on the left      joystick controls the swing and      an up or down motion controls      the boom’s up and down      motion
2445 Tractor Specifications
2445 Backhoe Specifications
Engine:  45HP Diesel Weight:  4,260 lbs. Height:  88” (to top of canopy) Speed:  0-8 mph Tires:  10:00x16.5 Loader, 6-ply;  Tractor width- 56” Optional Tires:  31-15:50x15 Turf, 4-ply  Tractor width- 63” Ground Clearance:  9” Frame:  1/4” to 3/4” Steel Plate PTO:  12GPM @ 3,000 PSI Fuel Tank:  15 gallon Hydraulic Oil Tank:  15 Gallon 10W40 Lift Capacity:  1,800 lbs. Lift Height:  9’ Inside Turning Radius:  4’5” Outside Turning Radius:  9’6” Wheel Base:  73” ROPS:  Standard
Reach:  10’ Breakout Force (bucket curl): 3,500 lbs. Digging Depth: 8’ Bucket Widths:  12” & 18” Swing:  60° both directions Outrigger:  vertical slide

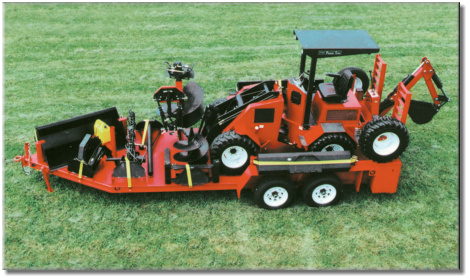

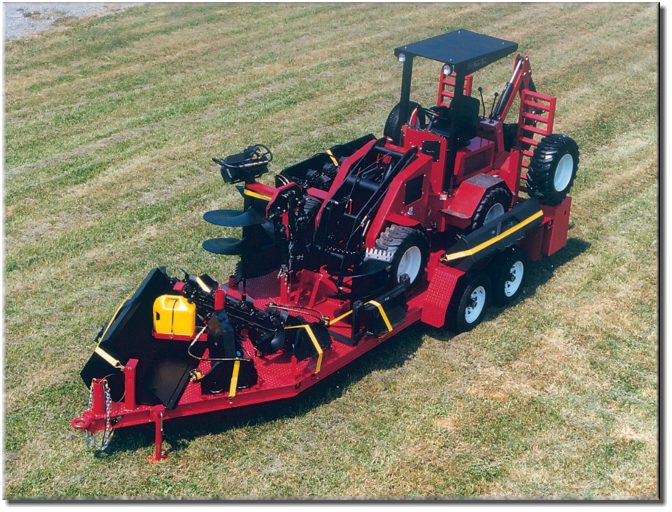

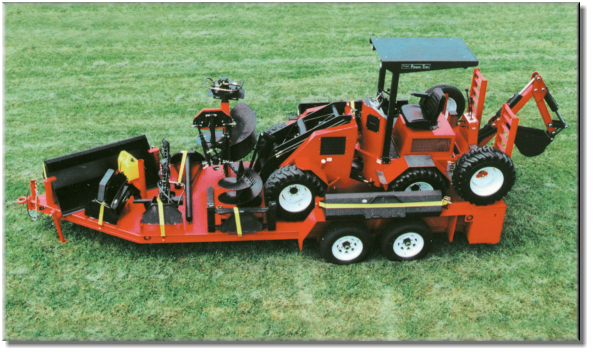

TR18 Trailer Package
16 ft. custom trailer with spare tires, toolboxes and PT2445 tractor
Choose from a standard package with trailer, PT1445 or PT2445 tractor, 8cu. bucket, 18cu. bucket, lift boom, forks, trencher, planter drill head, 9”, 24” and 36” augers, stump cutter, tiller, lift boom, forks OR build your own custom package: o up to 15 attachments o choose between PT-1445 and PT-2445 o 10,000 lbs. gross weight o Double Axle Trailer o Electric Brakes on both axles o Hitch options:  Pendle or 2- 5/16” ball *Call 1-800 THE YARD for Trailer Prices
TR18 Trailer Package features
